| Картина | Модель | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Classic 20-6 | 20 | 2 | 3 | 6 | 230 | 50/60 | 45 | 130 | G1 |
 |
Mega 25-10 | 25 | 5 | 6.5 | 10 | 230 | 50/60 | 185 | 180 | G1 1/2 |
 |
Classic E 20-6 | 20 | 2 | 3 | 6 | 230 | 50/60 | 45 | 130 | G1 |
 |
Classic S 32-4 | 32 | 1.7 | 2 | 4 | 230 | 50/60 | 22 | 180 | G2 |
 |
Basic 32-5S | 32 | 2.5 | 2.8 | 5 | 115/230 | 50/60 | 85/60/40 | 180 | G2 |
 |
Basic 50-20F | 50 | 12 | 14 | 20 | 230 | 50/60 | 1300 | 280 | DN50 |
 |
Basic 65-10SF | 65 | 20 | 6.5 | 10 | 380 | 50 | 1000 | 300/340 | DN65 |
 |

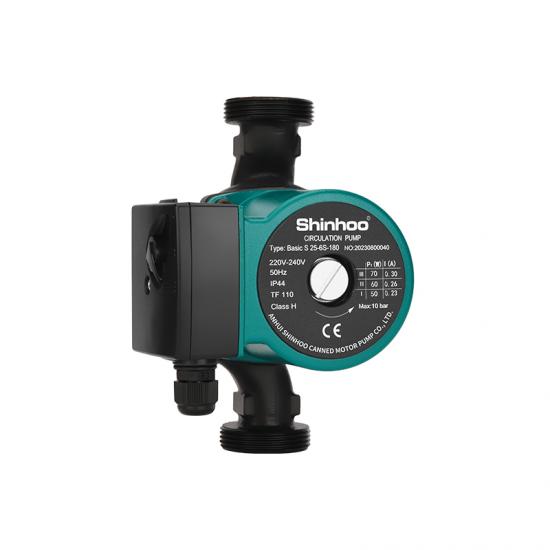

Basic S 25-7S | 25 | / | / | 6.5 | 230 | 50 | 100/80/60 | 130/180 | G1 1/2 |
