| Картина | Модель | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Basic 65-12SF Pro | 65 | 20 | 10.7 | 13 | 380 | 50 | 1300 | 340 | DN65 |
 |
Basic 80-12SF Pro | 80 | 25 | 10 | 12 | 380 | 50 | 1500 | 360 | DN80 |
 |
Basic 65-18SF Pro | 65 | 37 | 24 | 17.5 | 380 | 50 | 1800 | 340 | Flange |
 |
Basic S 20-4S | 20 | / | / | 4 | 230 | 50 | 50/40/30 | 130 | G1 |
 |
Basic S 25-4S | 25 | / | / | 4 | 230 | 50 | 50/40/30 | 130/180 | G1 1/2 |
 |
Basic S 32-4S | 32 | / | / | 4 | 230 | 50 | 50/40/30 | 180 | G2 |
 |
Basic S 20-5S | 20 | / | / | 5 | 230 | 50 | 65/50/40 | 130 | G1 |
 |
Basic S 25-5S | 25 | / | / | 5 | 230 | 50 | 65/50/40 | 130/180 | G1 1/2 |
 |
Basic S 32-5S | 32 | / | / | 5 | 230 | 50 | 65/50/40 | 180 | G2 |
 |
Basic S 20-6S | 20 | / | / | 6 | 230 | 50 | 70/60/50 | 130 | G1 |
 |
Basic S 25-6S | 25 | / | / | 6 | 230 | 50 | 70/60/50 | 130/180 | G1 1/2 |
 |
Basic S 32-6S | 32 | / | / | 6 | 230 | 50 | 70/60/50 | 180 | G2 |
 |
Basic S 20-7S | 20 | / | / | 6.5 | 230 | 50 | 100/80/60 | 130 | G1 |
 |
Basic S 25-7S | 25 | / | / | 6.5 | 230 | 50 | 100/80/60 | 130/180 | G1 1/2 |
 |
Basic S 32-7S | 32 | / | / | 6.5 | 230 | 50 | 100/80/60 | 180 | G2 |
 |
Basic S 25-8S | 25 | / | / | 8 | 230 | 50 | 180/175/130 | 180 | G1 1/2 |
 |
Basic S 32-8S | 32 | / | / | 8 | 230 | 50 | 180/175/130 | 180 | G2 |
 |

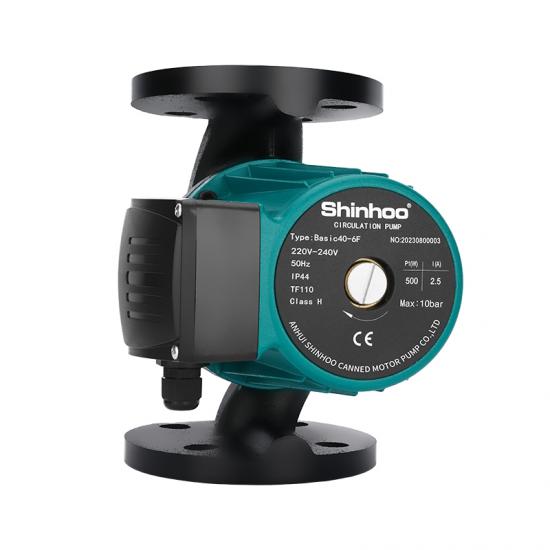

Basic 40-6F | 40 | 12.5 | 4.5 | 6 | 230 | 50 | 500 | / | / |
 |
Basic T40-12F | 40 | 8 | 10 | 14 | 220~240 | 50 | 700 | 304 | Flanged |
